Principle Of Operation

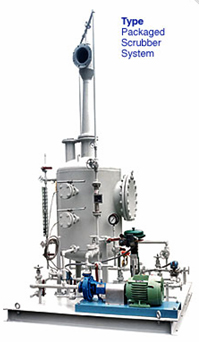

Packaged Scrubber System is a completely "packaged", movable gas scrubber separator system that is especially designed for use in pilot plants, laboratories, or temporary locations in full size processing plants. Packaged Scrubber System uses water or other liquid to clean large quantities of objectionable gases that are inherent in most laboratories or processing applications.

Packaged Scrubber System can achieve contaminant removal efficiencies as high as 99.99% in many applications.This package typically consists of a Ejector Venturi Gas Scrubber and Separator with storage mounted on a steel baseplate. Depending on the customer’s requirements, pump and recirculating piping may be supplied. Optional accessories may include a heat exchanger, a level gauge or alarm or an additional liquid storage tank. Since all Packaged Scrubber Systems are custom sized and designed, design temperature and pressure will be accounted for on an individual basis.

Separator uses specially impact baffle separator element to direct the downward discharge of a Ejector Venturi Gas Scrubber through a turbulent 90 degree bend of direction into a sidewall. There, an inertial separation occurs as the impacted liquid drains downward and the gas stream, free of liquid, reverses its direction and heads out of the separator through a nozzle located opposite to the region of liquid-air impact.

Advantages

Fully customized, complete engineered solution. Versatile, flexible and expandable. Tolerates system upsets.

The Separator is recommended whenever space for gravity separation is not possible, desirable, or combined discharge of the liquid gas streams is undesirable. The continued contact through the impact baffle aids scrubbing efficiency. The unit is more compact than a gravity or cyclonic separator. Units can be designed with or without liquid storage capacity.

Applications

Treatment of laboratory off-gases.

Scrubbing of metal treating emissions.

Acid gas scrubbing.
